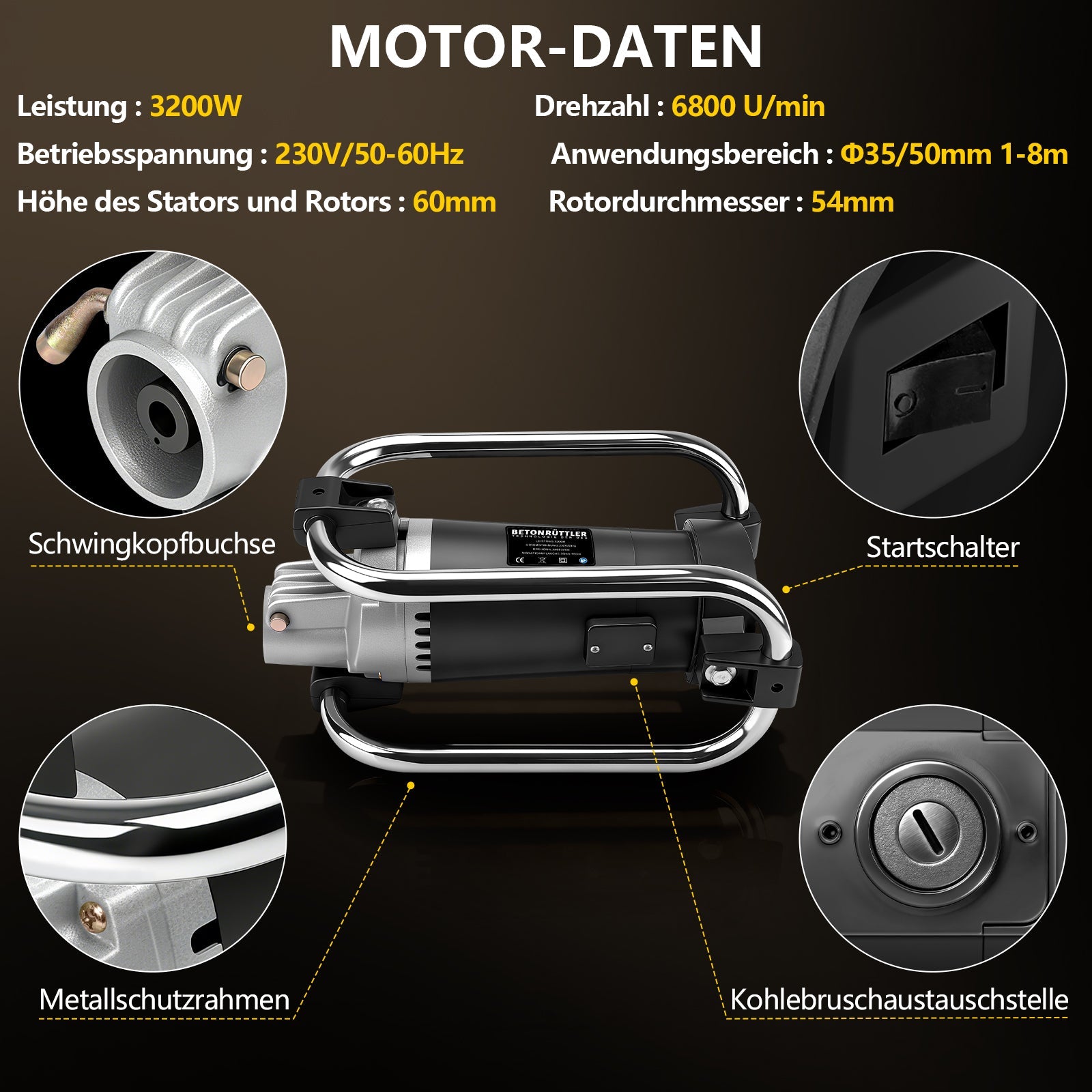

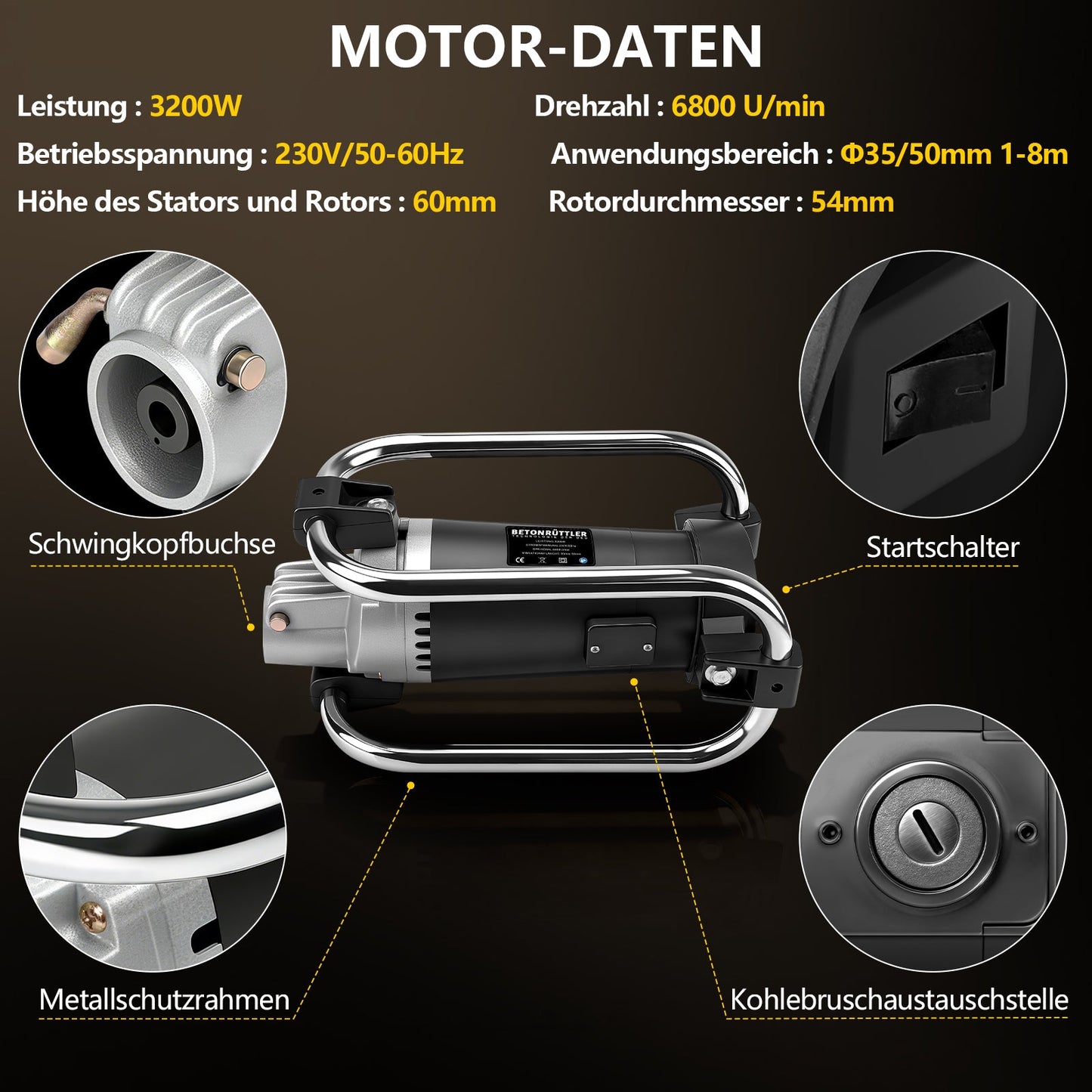

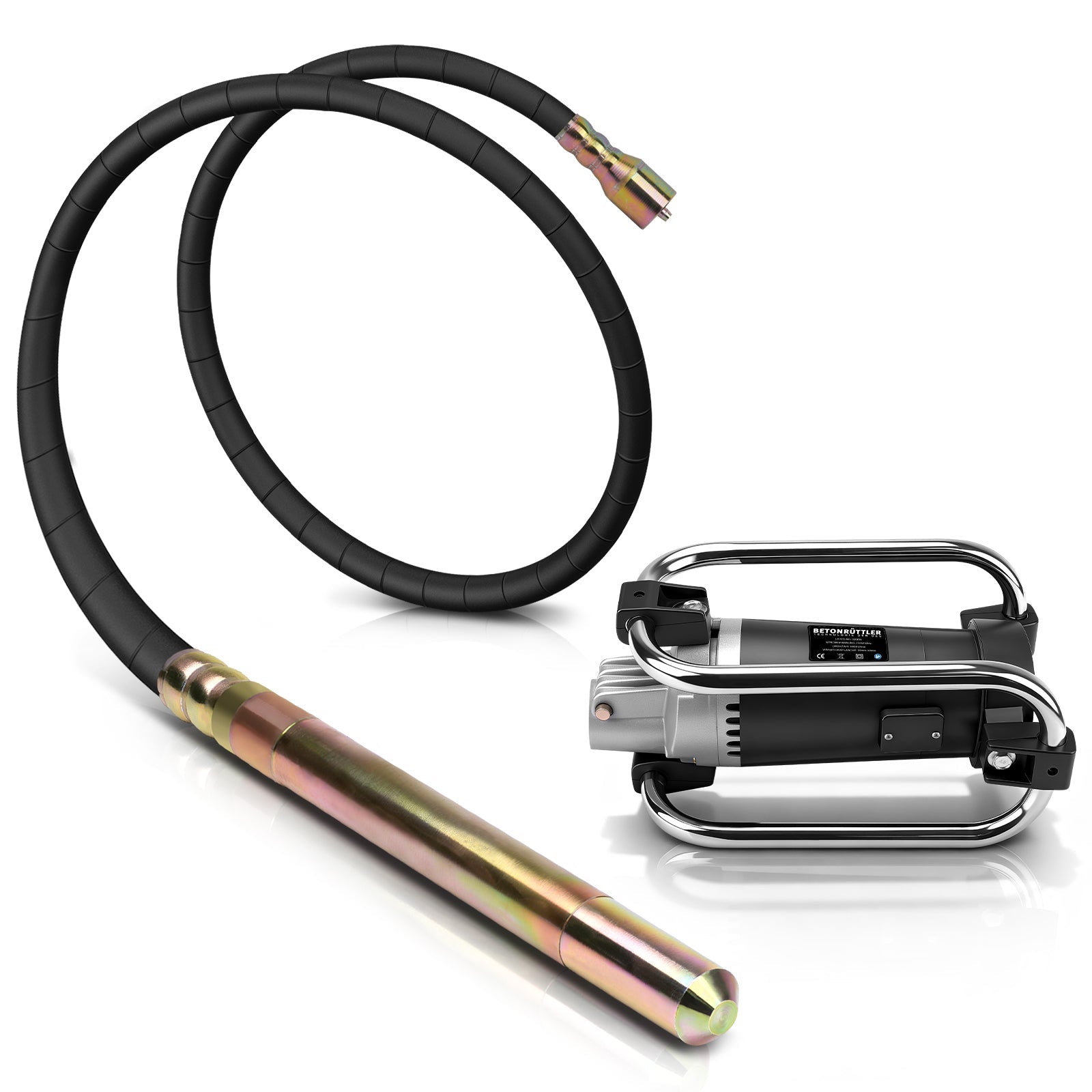

This concrete vibrator was specifically developed for professional use in construction. The 3200W pure copper motor reaches up to 6800 rpm and effectively transmits vibrations into the fresh concrete, reducing trapped air and promoting a denser concrete structure.

Main Benefits

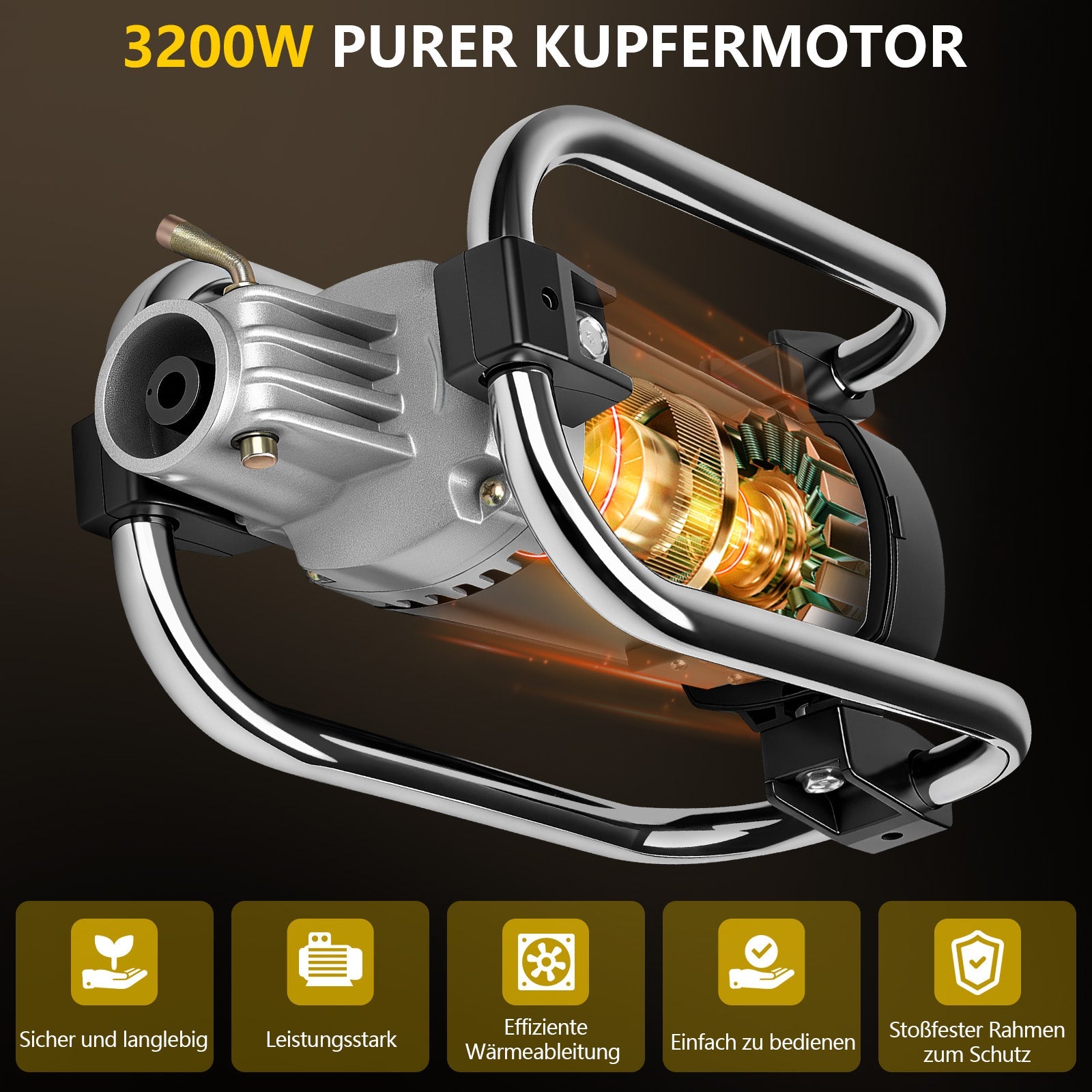

• Powerful 3200W copper motor for stable performance and reliable operation.

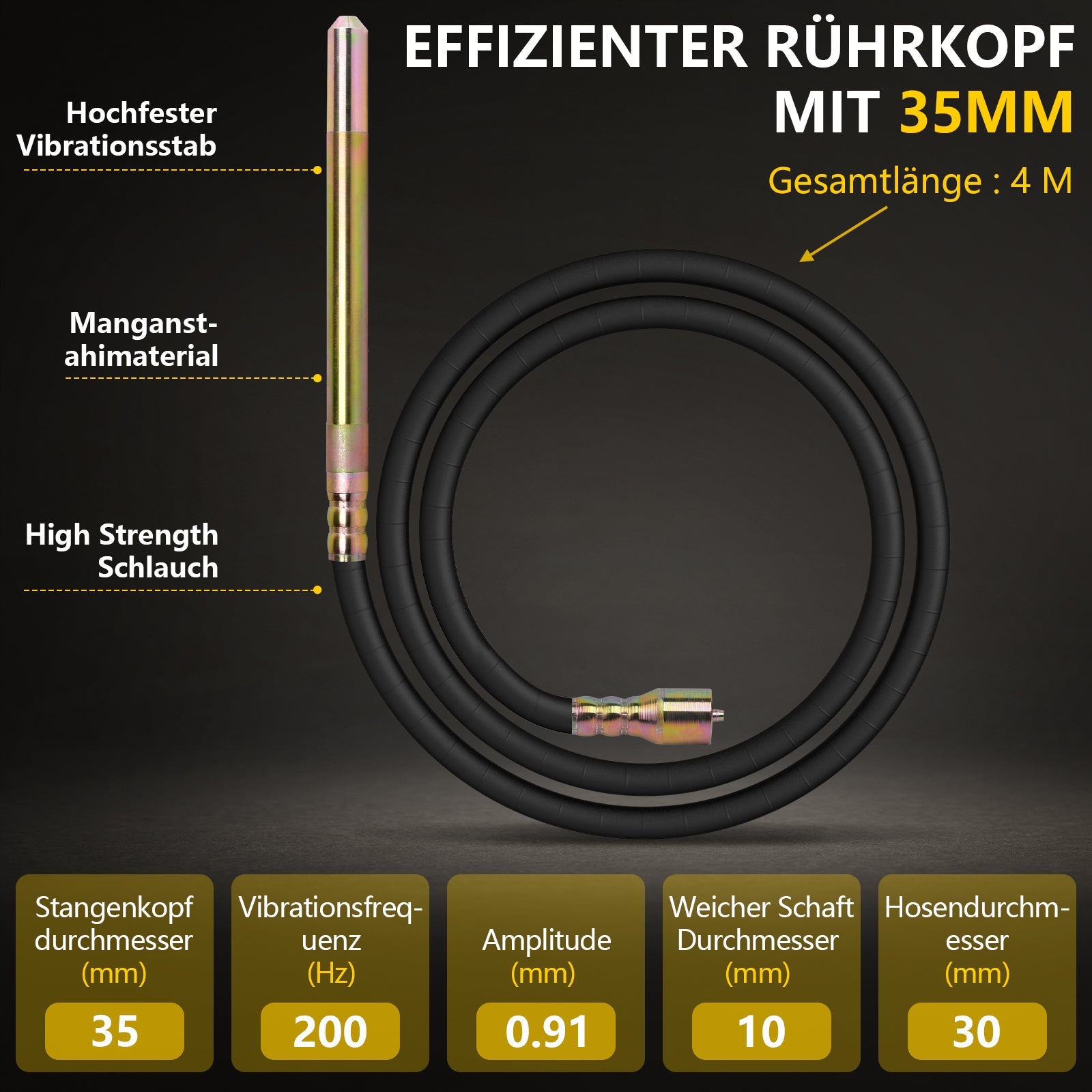

• 35 mm vibrator head + 4 m flexible shaft – common configuration for many construction site applications.
• High operating frequency (200 Hz) and 0.91 mm amplitude for efficient de-airing.
• Durable housing made of aluminum with a metal protective frame and ABS fan for improved longevity.
• Easy operation: start at the push of a button; handling of the vibrator head is intuitive.
• Operating duration: For typical use, continuous operation of up to 30 minutes is specified (under normal conditions).

Applications

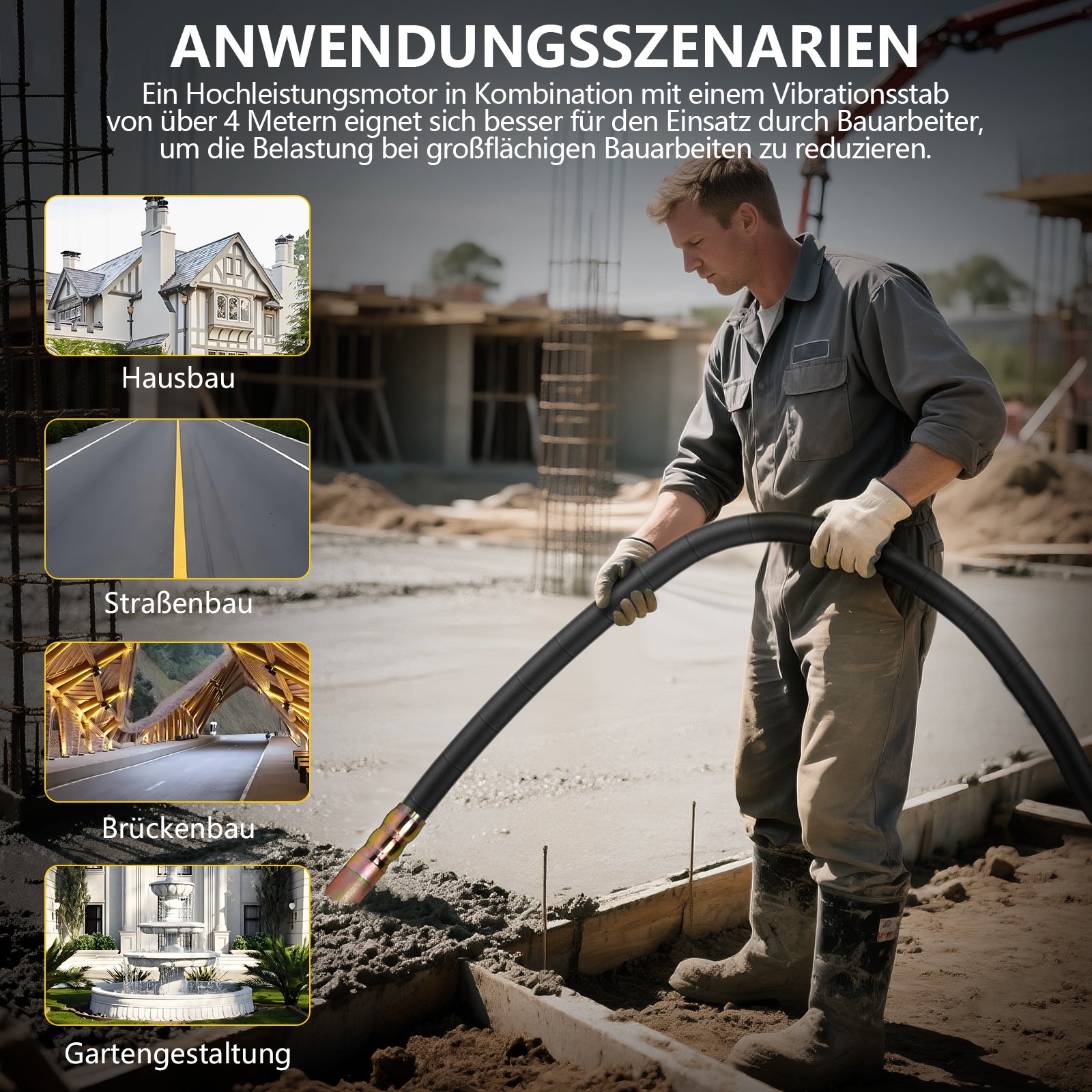

Ideal for road construction, building construction, bridge construction as well as foundation and formwork work. Designed for professional users and construction companies who value work efficiency and uniform compaction.

Operating Instructions

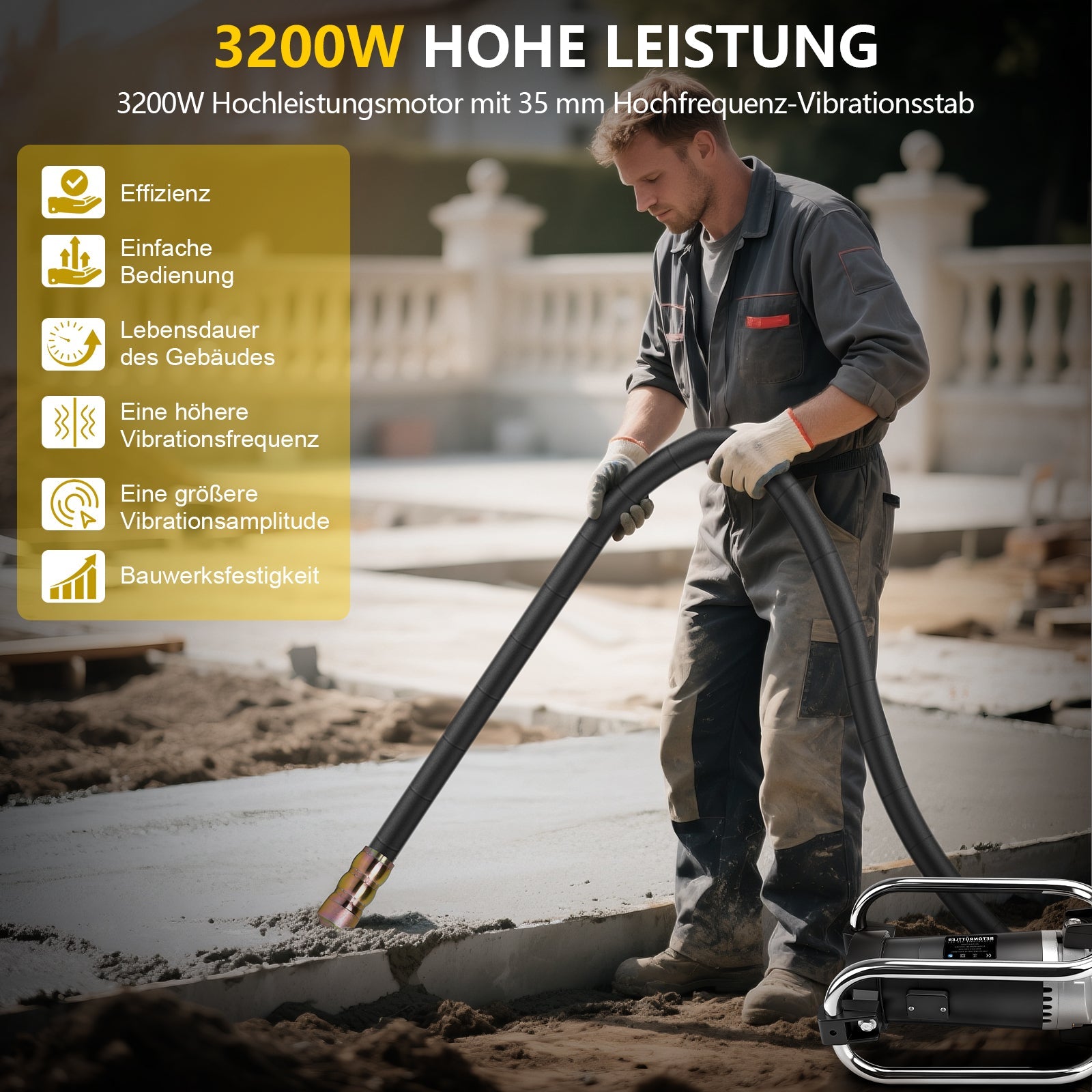

To start, press the start button. Hold the flexible shaft, insert the vibrator head into the desired spot in the concrete and observe the concrete. Once no more flow is visible, withdraw the head and move to the next location.

Delivery Note

The motor and flexible shaft are shipped in separate packages for weight reasons. If there is a timing difference in arrival, we ask for your understanding.

Technical Specifications

Safety and Maintenance Instructions

• Perform a visual inspection for damage before each use.
• Operate only in dry environments and on secure, level surfaces.
• Disconnect the unit from the power supply for maintenance work.
• Store the unit clean and dry during extended periods of inactivity.
