Voltage converter 1000W/2000W 12V - 230V pure sine wave inverter 2USB

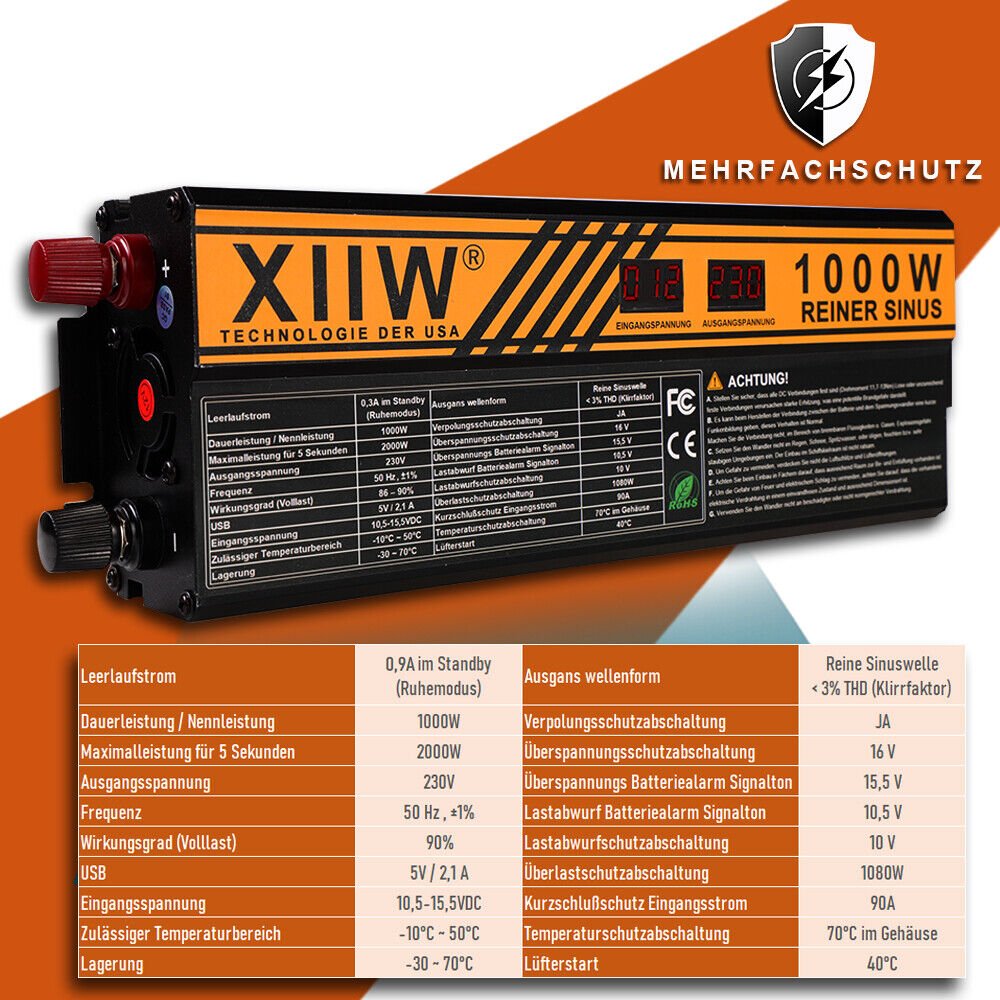

Idle current: 0.3A in standby (sleep mode)
Continuous power / rated power: 1000WMaximum power for 5 seconds: 2000W
Output voltage: 230V
Frequency: 50 Hz, ±1%
Efficiency (full load): 86 – 90%
USB: 5V / 2.1A
Input voltage: 10.5-15.5VDC
Permissible temperature range: -10°C ~ 50°C
Storage: -30 ~ 70°C
Output waveform: Pure sine wave < 3% THD (Total Harmonic Distortion)

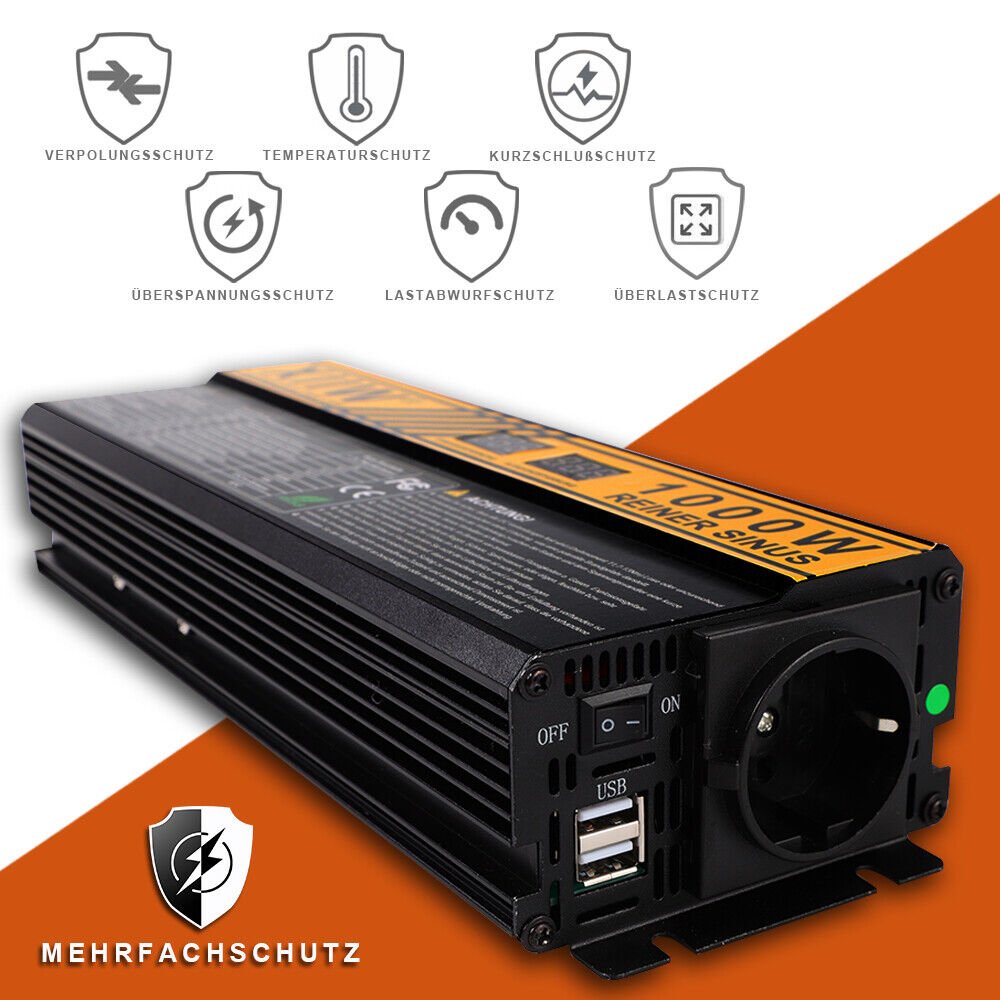

Reverse polarity protection shutdown: YES
Overvoltage protection shutdown: 16 V
Overvoltage battery alarm signal tone: 15.5 V
Load shedding battery alarm signal tone: 10.5 V
Load shedding protection shutdown: 10 V
Overload protection shutdown: 1080W
Short circuit protection input current: 90A
Temperature protection shutdown: 70°C in the housing
Fan start: 40°C
Size (mm): 270*100*60 mm
Net weight (kg): 1.4kg
Calculation formula for selecting the battery model
Maximum battery discharge current
=Nominal power of the inverter / (battery voltage * 0.85)
Battery capacity (C)
=maximum discharge current (I) * continuous working time (H)
For example:
the maximum load is 500W,
must be used for 2 hours,
maximum discharge current = 500 / (12 * 0.85) = 49A;
Battery capacity (C) = 54 * 2 = 98Ah,
so you can choose > 100AH battery
DANGER!
It is recommended that the selection of the battery model meets the following conditions:
maximum discharge current < 0.5 * battery capacity
For example: 49 < 0.5*100
A notice:
Also suitable for all other appliances up to 1000W. The refrigerator draws a lot of power when switched on, generally 6 to 9 times the specified value. Please connect a refrigerator with less than 100W.
