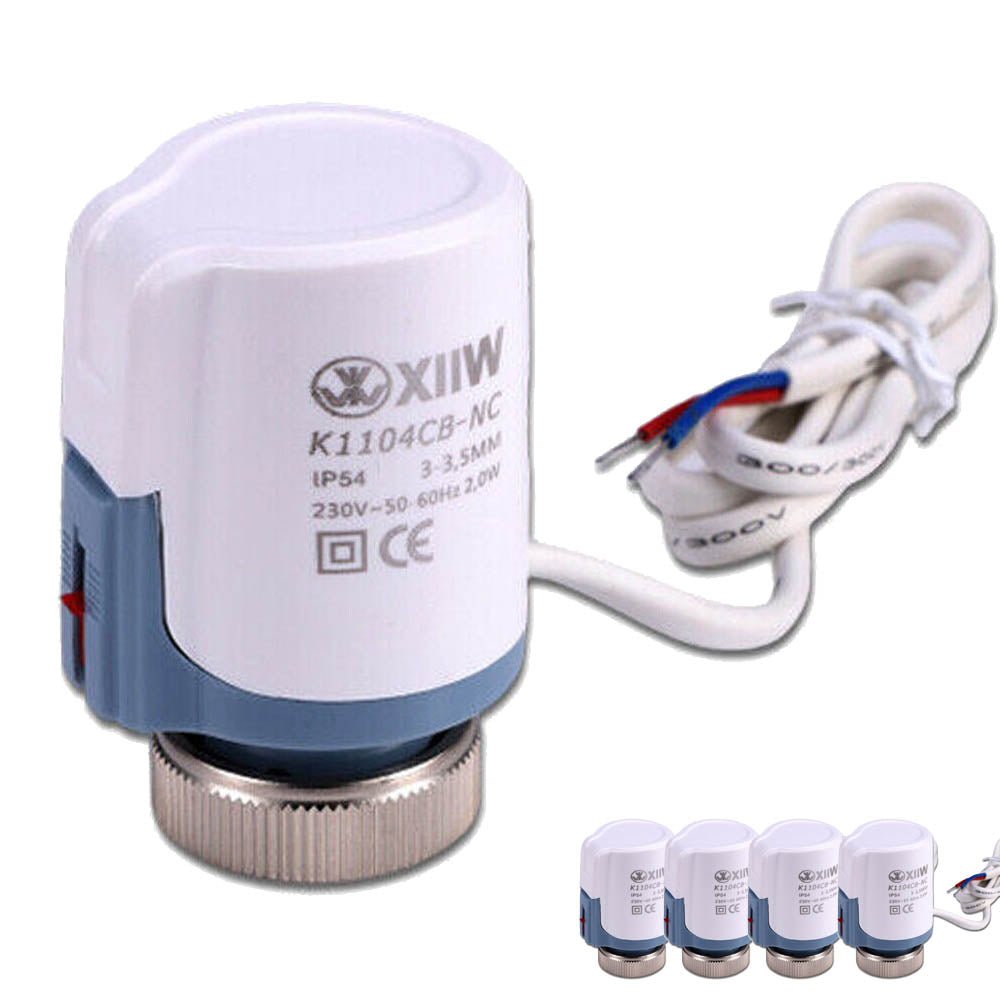

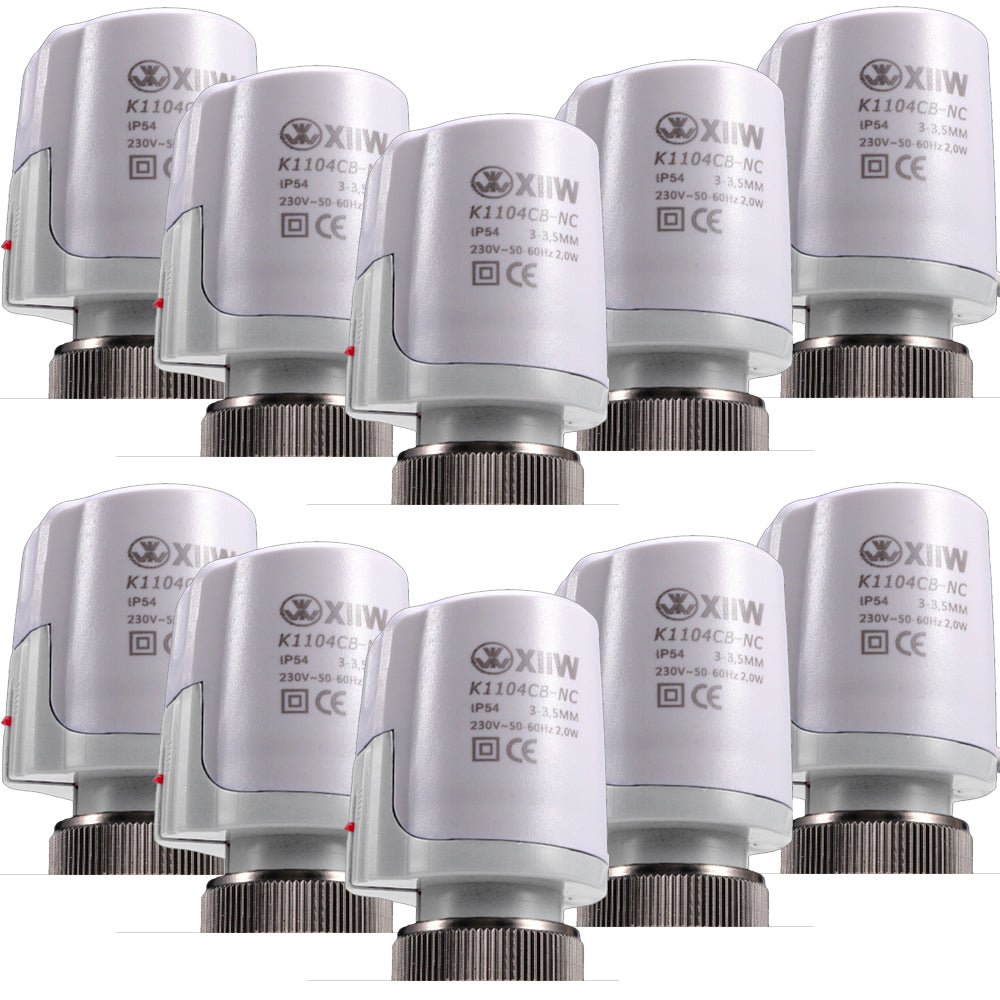

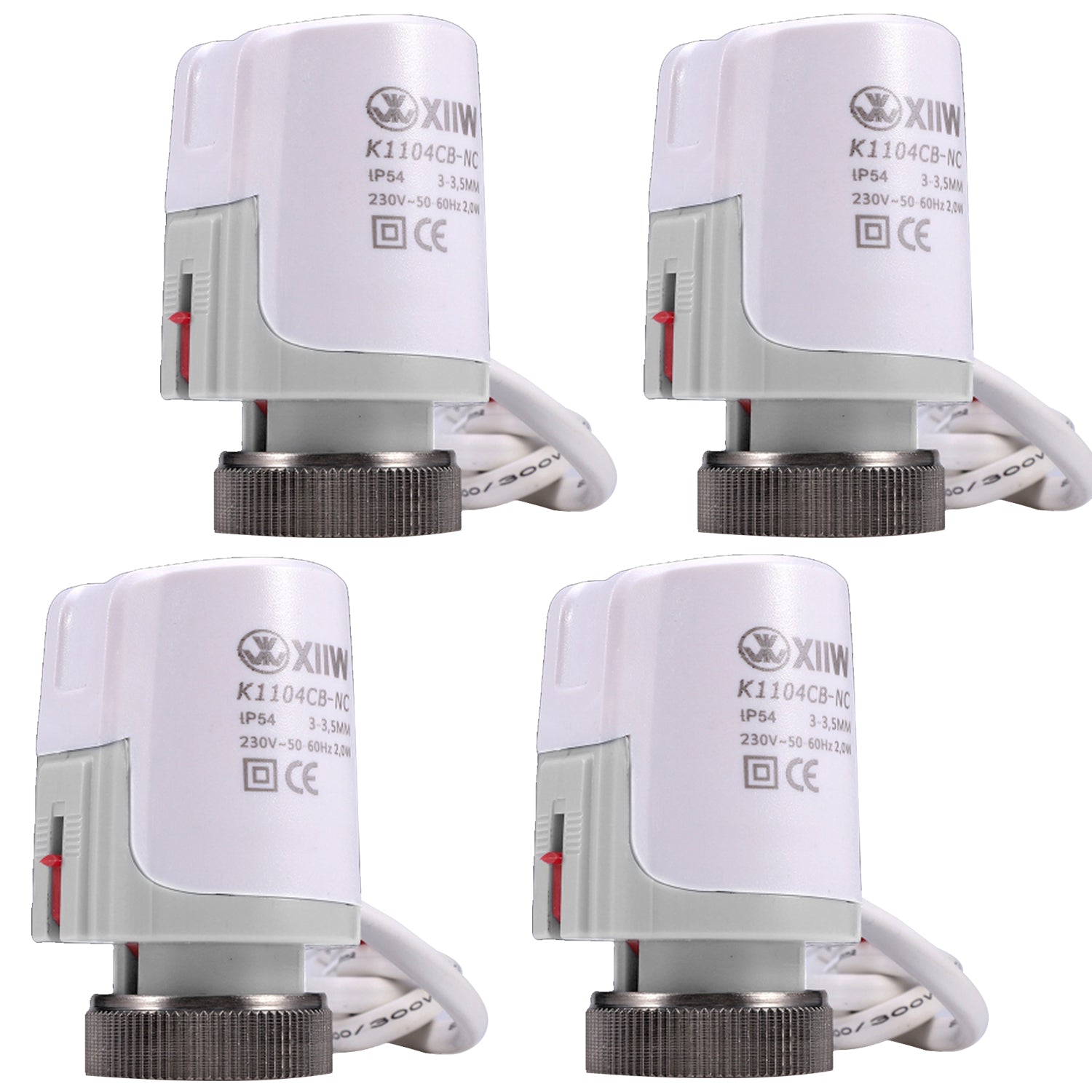

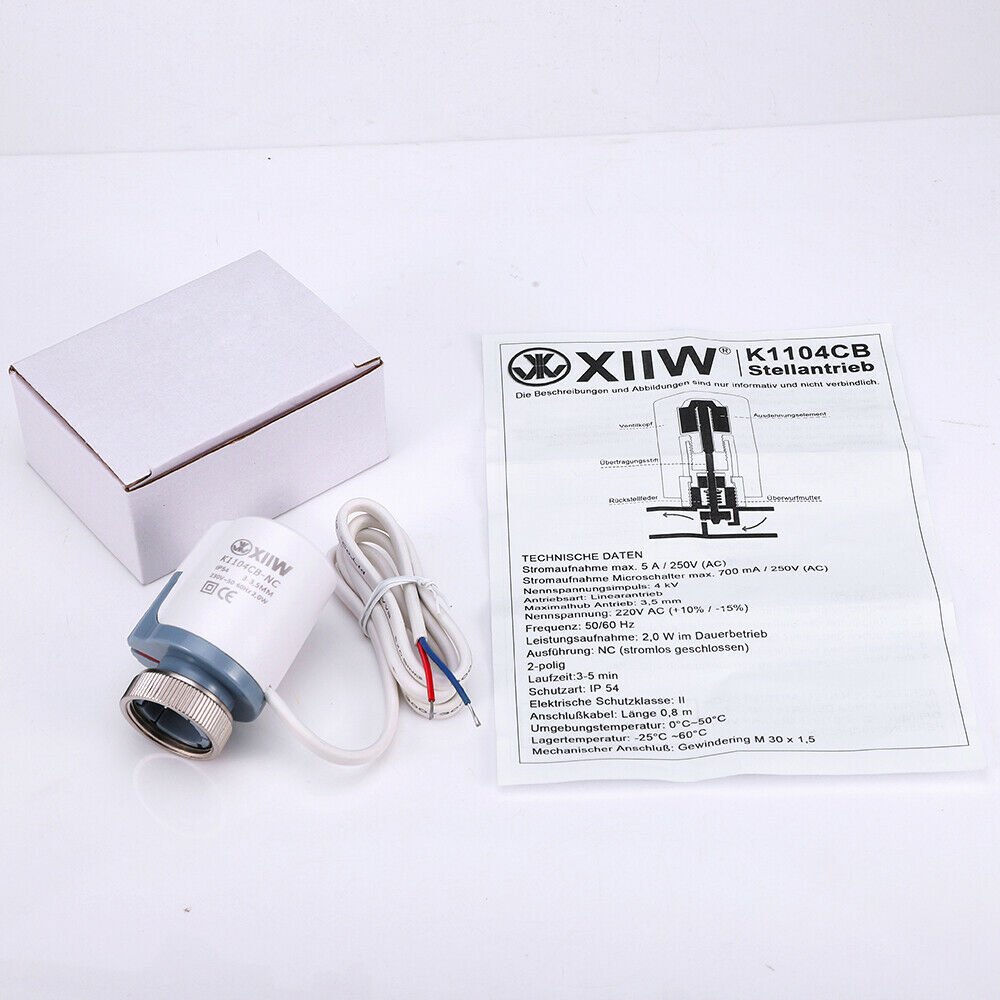

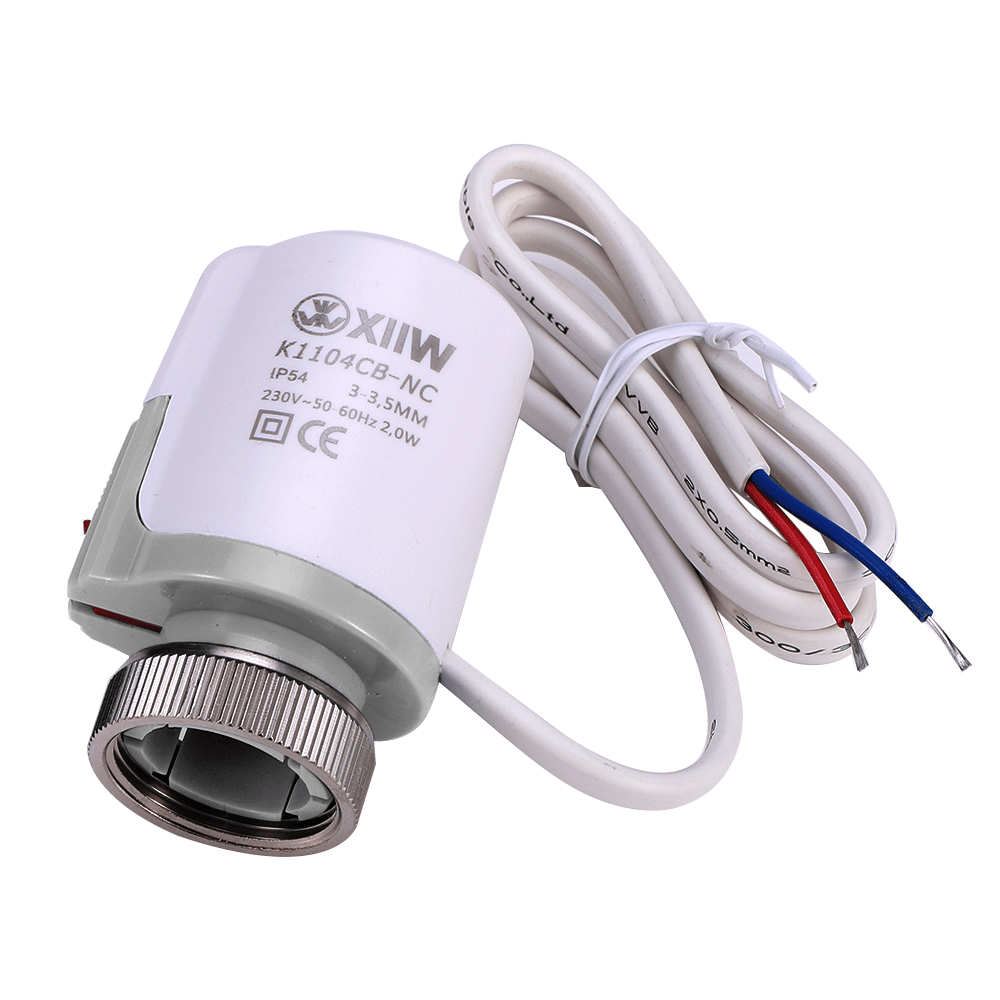

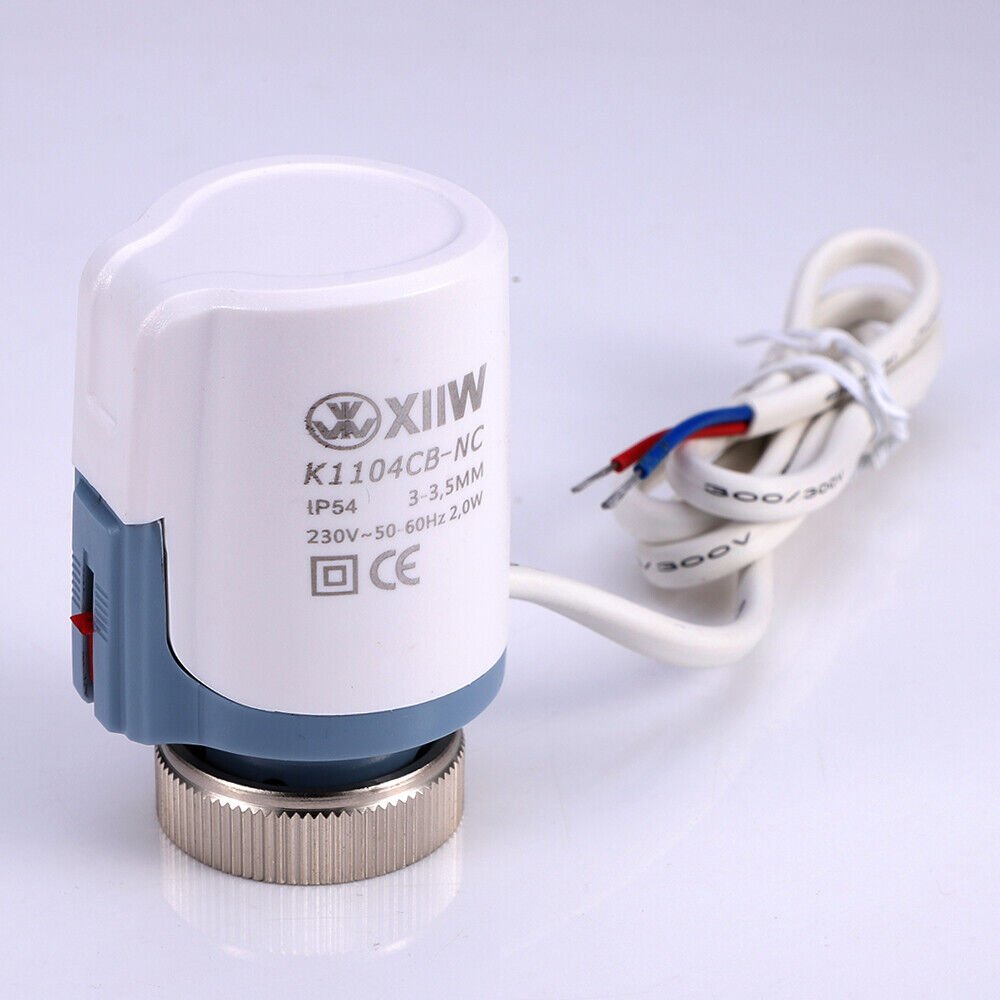

XIIW 1-10pc actuator | normally closed | M30x1.5 | 230V

TECHNICAL DATA
Current consumption max. 5 A / 250 V (AC)
Microswitch current consumption max. 700 mA / 250V (AC)
Nominal voltage pulse: 4 kV
Drive type: linear drive
Maximum stroke drive: 3.5 mm
Nominal voltage: 230V AC (+10% / -15%)
Frequency: 50/60 Hz
Power consumption: 2.0 W in continuous operation
Version: NC (normally closed)
2-pole
Running time: 3-5 min
Protection class: IP 54
Electrical protection class: II
Connection cable: length 0.8 m
Ambient temperature: 0°C~50°C
Storage temperature: -25°C ~60°C
Mechanical connection: threaded ring M 30 x 1.5


APPLICATION
The actuator works according to the ON/OFF principle and is usually controlled via a room thermostat.

OPERATION

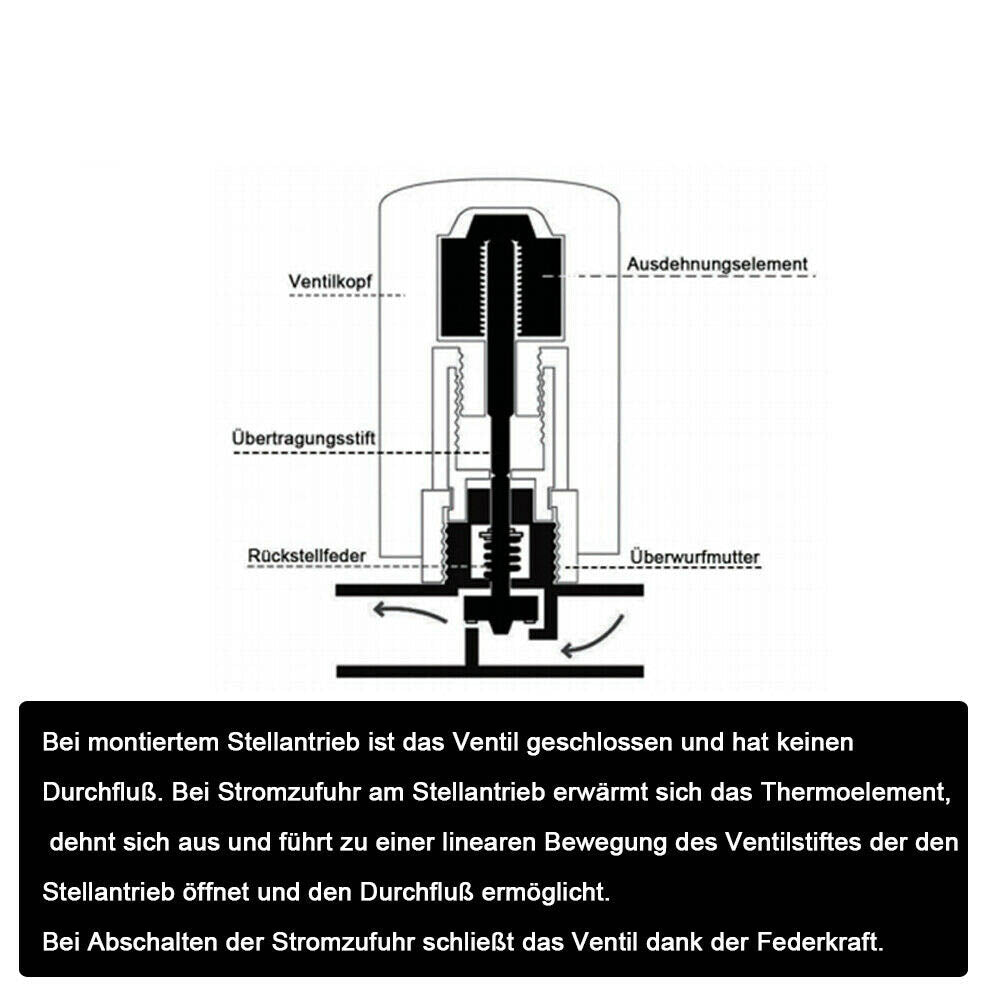

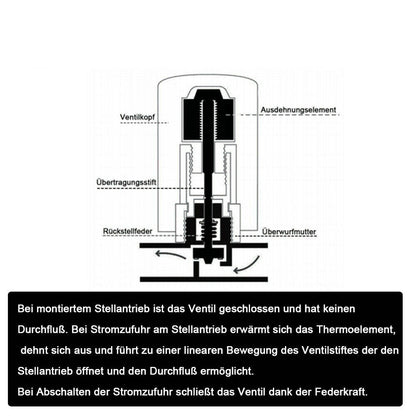

When the actuator is mounted, the valve is closed and has no flow. When power is applied to the actuator, the thermocouple heats up, expands, and causes a linear movement.
the valve pin that opens the actuator and allows flow.
When the power supply is switched off, the valve closes thanks to spring force.

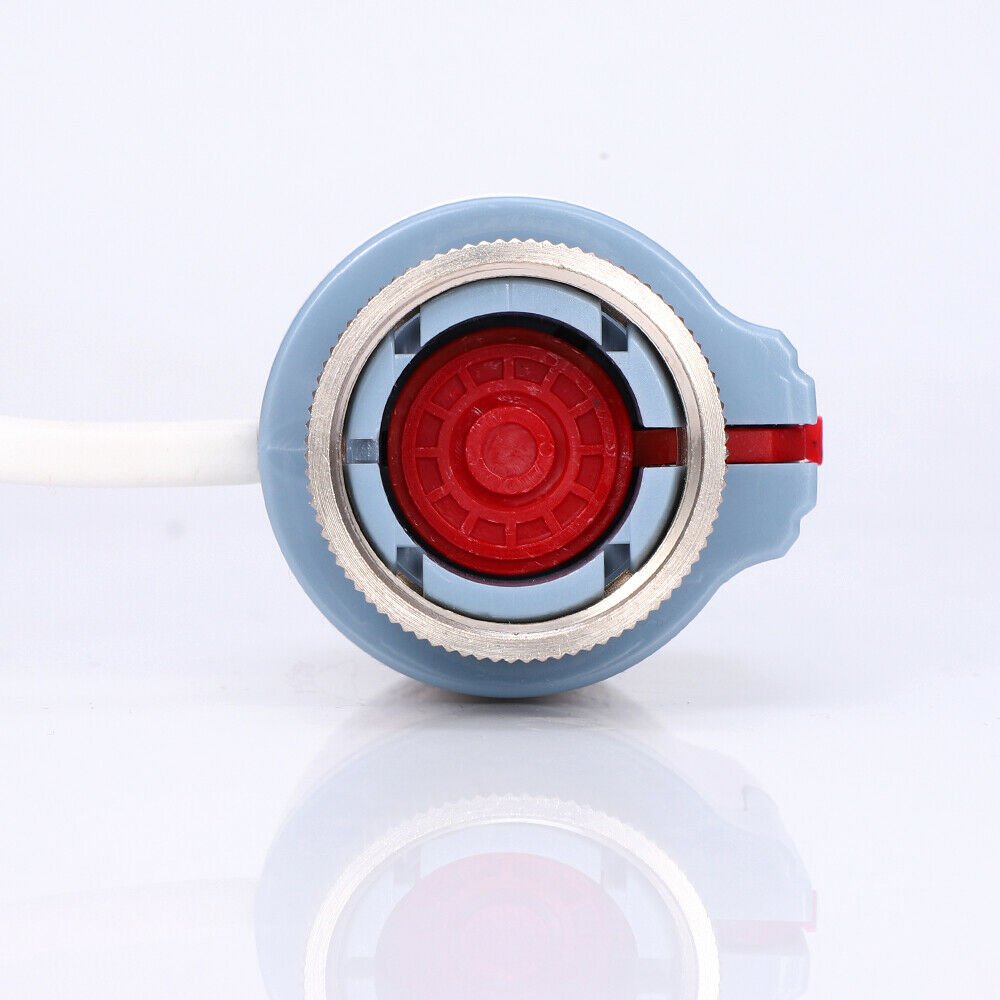

On the upper part of the actuator there is a stroke indicator, which shows whether the valve is open.


INSTALLATION
1. Remove the valve’s protective cap or handwheel
2. manually screw the actuator ring nut onto the valve thread and thus block it

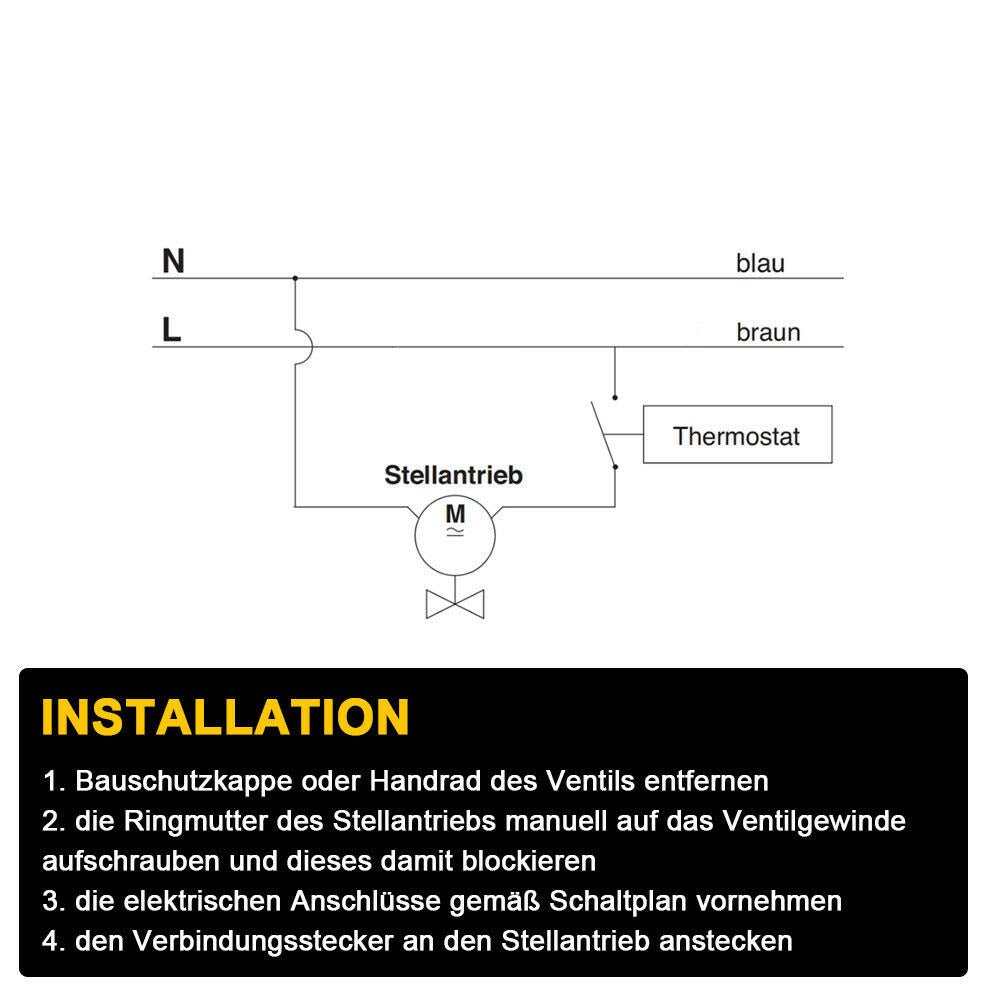

3. Make the electrical connections according to the wiring diagram
4. Connect the connector to the actuator


CAUTION DO NOT OPEN THE ACTUATOR EVEN IF DEFECTIVE, THERE IS A RISK OF PERSONAL INJURY.
